5. Superior quality, we can help you configure your solar system to suit your needs.

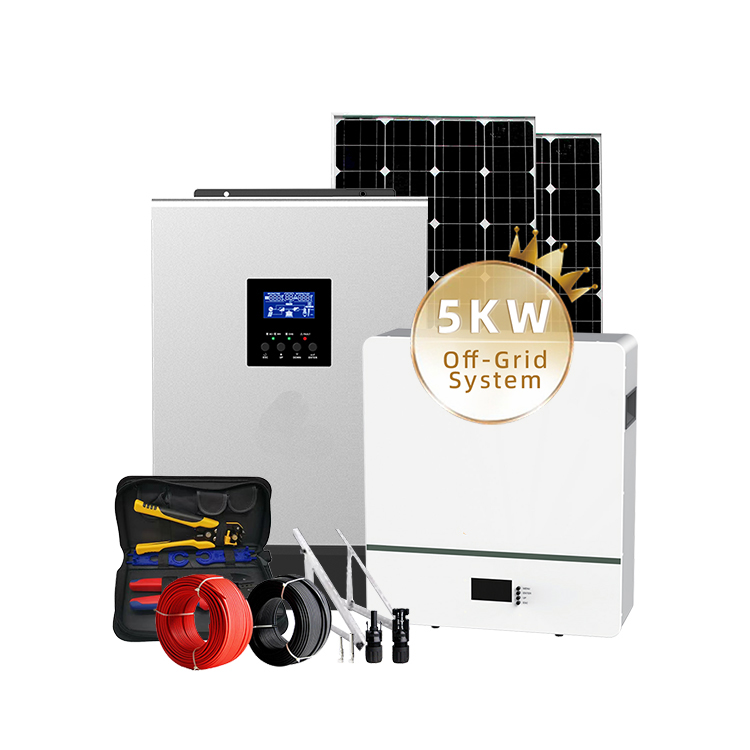

| 5KW Off-grid Solar Energy System Collocation Scheme | |||||
| Item | Model | warranty | Description | Package Details | Quantity |
| 1 | 5KW wall-mounted LiFePO4 battery | 3years |
Voltage:51.2 V Capacity:100AH |
501*452*155±3mm/52kg | 1 piece |
| 2 | Off-grid Pure Sine Wave 5KW Inverter | 3years |
Rated Power: 5KW; With Built-in Charger controller |
540*295*140mm 13.5kg | 1 piece |
| 3 | Solar Panels | 25 years |
550W (Mono) Number of Solar Cells: 144(182*182mm) |
2279*1134*35mm 28kg | 6 pieces |
| 4 | Cables | / |
DC 1500V Rated current: 58A Conductor resistance at 20°C: 3.39Ω /km Chip thickness: 2.5mm Length:100m |
/ | 100m |
| 5 | Tools | / |
Cable Cutter; Stripper,MC4 Crimper,MC4Assembly &Disassembly Tool |
/ | 1 piece |
| 6 | Mounting System | / |
Solar Panel Mounting Rack wind load:55m/s snow load:1.5kn/m2 |
These are the basic configurations,if you have more detailed installation requirements, please contact our sales representative. | 1 set |
| Kindly Reminder: The Above System Configuration For Initial Designing, The System Configuration Are Subject to Changing Depends on Your Final Installation Conditions and Requirements. | |||||
| Daily power generation/storage | Support Loads(one day) | ||
| Power generation | 16.5 degrees |
55 Inch LED TV 925W 8hours |
Air Purifier 137.5W 5hours |
| Battery storage capacity | 5.12 degrees | Deskcenter Computer 2200W 8Hours | Rice Cooker 2000W 4hours |
