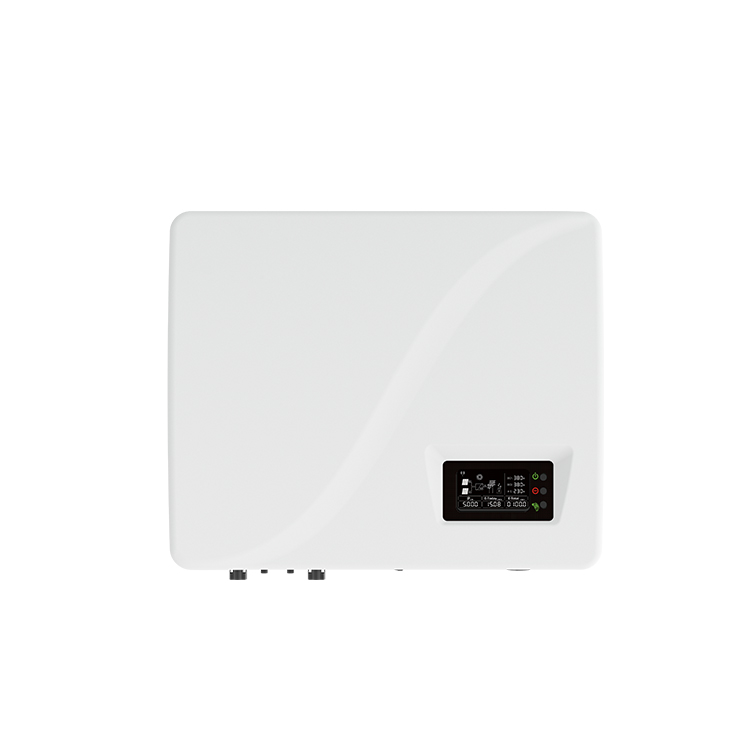

Model No

YZ4KTL

YZ5KTL

YZ6KTL

YZ8KTL

YZ10KTLM

Input(DC)

Max DC power(W）

6000

7500

9000

12000

15000

Max  DC  voltage  (Vdc)

1000

1000

1000

1000

1000

Min working voltage (Vdc)

250

250

250

250

250

MPPT  voltage  range  (Vdc)

250-850

250-850

250-850

250-850

250-850

Max input current / per string (A)

13/13

13/13

13/13

13/13

13/13

Number of MPPT trackers

2

2

2

2

2

Strings per MPPT tacker

1

1

1

1

1

AC Side /Output Parameters

AC nominal  power (W)

4000

5000

6000

8000

10000

Max AC  apparent  power  (VA)

5000

6000

7000

8800

11000

Max output current (A)

8

10

12

15

17

Nominal AC output

50/60  Hz,400  Vac

AC  output  range

45/55 Hz; 280 ~ 490 Vac (Adj)

Power factor

0.8leading..0.8laging

Harmonics

<5%

Grid  type

3 W/N/PE

Efficiency

Max efficiency

98.00%

98.20%

98.20%

98.30%

98.40%

Euro  eficiency

97.50%

97.70%

97.70%

97.80%

97.90%

MPPT  effidiency

99.90%

99.90%

99.90%

99.90%

99.90%

Safety and Protection

DC reverse-polarity protection

yes

DC   breaker

yes

DC/AC SPD

yes

Leakage current protection

yes

Insulation Impedance Detection

yes

Residual Current protection

yes

General Parameters

Dimension (W/H/D)(mm)

480*400*180

Weight  (kg)

22

Operating temperature range (ºC)

-25 ~ +60

Degree of protection

IP65

Cooling concept

Natural convection

Topology

Transformerless

Display

LCD

Humidity

0-95%, no condensation

Communication

Standard WiFi; GPRS/LAN(optional)

Warranty

Standard 5 years; 7/10 years optional

Certificates and Approvals
