Solar Panels

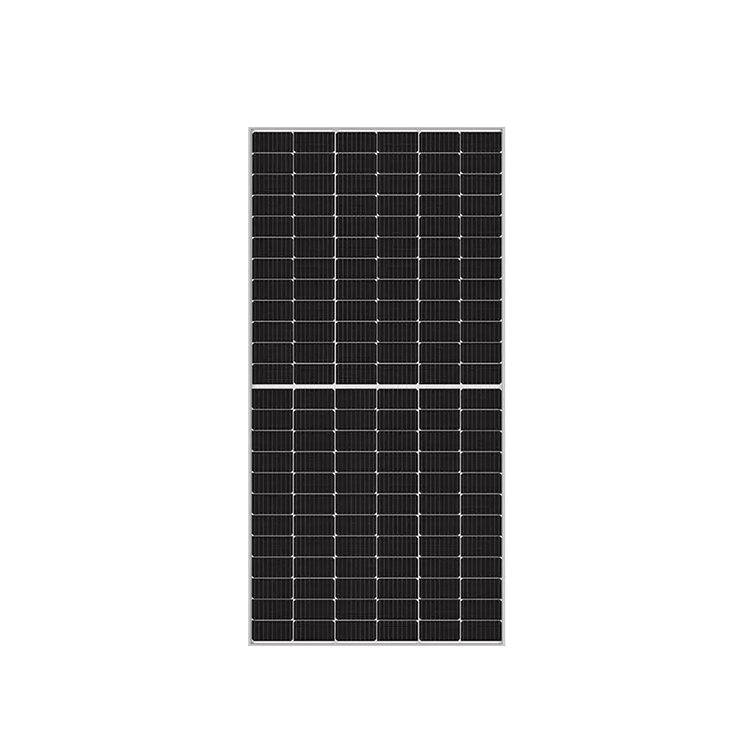

300-500w Solar Panels For Solar Energy System

Product description: 300-500w Solar Panels
INQUIRY

1. Uses multi-bus PERC cells to ensure that the PV panels generate more power.
2. Provides better temperature-dependent performance, which further increases power output.
3. Reduced shading effect on power generation reduces resistive losses, thereby increasing power generation.
4. Has increased resistance to mechanical stress and can withstand greater loads.
5. Backed by a 12-year product warranty and a 25-year linear power output warranty.
6. has passed a number of international certifications such as CE, IEC 61215 and IEC 61730.

Product Paraments

TYPE	YZJA60- 330	YZJA60-350	YZJA60-370	YZJA60-390	YZJA60- 400	YZJA72- 420	YZJA72- 450	YZJA72- 470	YZJA66- 500
Rated Maximum Power(Pmax) [W]	330W	350W	370W	390W	400W	420W	450W	470W	500W
Open Circuit Voltage(Voc) [V]	41.08	42.02	41.3	41.94	49.58	50.70	49.7	50.31	45.59
Maximum Power Voltage(Vmp)[V]	34.24	35.25	34.23	35.33	41.33	42.47	41.52	42.69	38.35
Short Circuit Current(Isc) [A]	10.30	10.62	11.35	11.58	10.33	10.56	11.36	11.53	13.93
Maximum Power Current(Imp)[A]	9.64	9.93	10.81	11.04	9.68	9.89	10.84	11.01	13.04
Module Efficiency [%]	19.6	20.8	19.9	21.0	19.9	20.9	20.3	21.2	21.1
Power Tolerance	0 ~ + 5W
Temperature Coefficient of lsc(a-Isc)	+0.044%/°C								+0.045%/°C
Temperature Coefficient of Voc(β-Voc)	-0.272%/°C								-0.275%/°C
Temperature Coefficient of Pmax(γ-Pmp)	-0.350%/°C
STC	Irradiance 1000W/m2，cell temperature 25°C, AM1.5G
Remark: Electrical data in this catalog do not refer to a single module and they are not part of the offer.They only serve for comparison among different module types.
