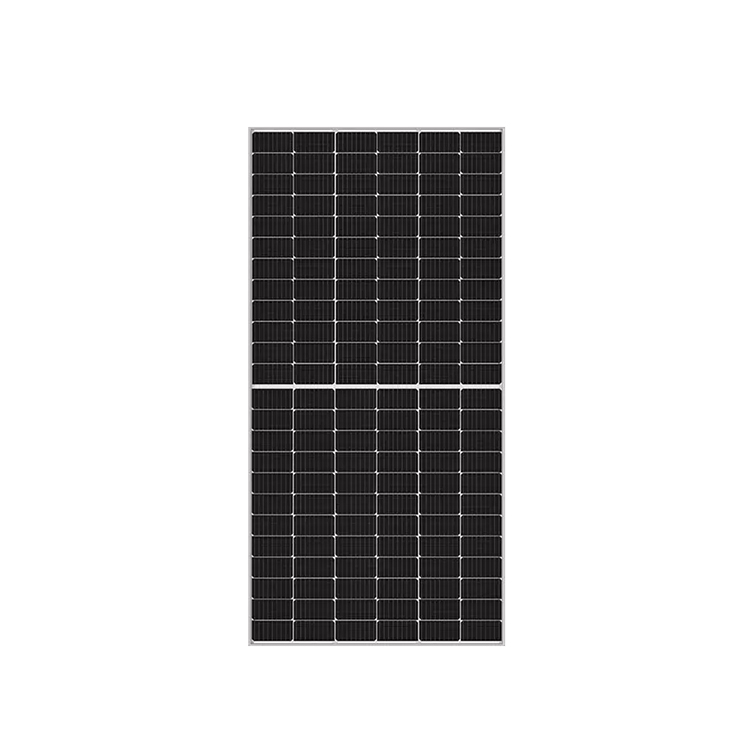

500W-550W High Efficiency Mono cigs Solar Panels For Solar System

Product description: 500-550w Solar Panels
INQUIRY

1. Reduces resistance losses, increasing power generation.
2. Use of advanced 182 Series PERC crystalline silicon half-cell technology.
3. Passed many international certifications, such as CE, IOS, IEC61730, etc.
4. 12-year product warranty and 25-year linear power output warranty.
5. Efficiently utilises solar energy resources to generate electricity for home use.
6. Adopting cell cutting technology to effectively reduce the risk of hot spots in high power modules.

Product Paraments

Electrical characteristics
Module type	YZPV-525	YZPV-530	YZPV-535	YZPV-540	YZPV-545	YZPV-550
Max power(Pmax)	525W	530W	535W	540W	545W	550W
Max power voltage(Vmp)	41.47V	41.63V	41.80V	41.96V	42.12V	42.28V
Max power current(lmp)	12.66A	12.73A	12.80A	12.87A	12.94A	13.01A
Open circuit voltage(Voc)	49.59V	49.74V	49.89V	50.04V	50.18V	50.32V
Short circuit current(lsc)	13.55A	13.62A	13.69A	13.76A	13.83A	13.90A
Module eff(%)	20.31%	20.51%	20.70%	20.89%	21.09%	21.28%
Output power tolerance	0~+5W
Temperature coefficient of Pmax	-0.360%/C
Temperature coefficient of Voc	-0.280%/C
Temperature coefficient of Isc	0.050%/C
Standard test conditions	Irradiance1000W / m2, batterytemperature25 C,spectrum am1.5g
Structural parameters
Solar Cells	Mono PERC182x182mm		Front Cover Glass		3.2mm high light transmittance,low iron tempered glass
Number of batteries	144(6X24)		Frame		Anodic alumina alloy
Component size	2279+2mm1134+2mm35+1mm		Component weight		27.5KG+3%
Connection box	P68, three diodes		Connector		QC4.10(1000V) QC4.10-35(1500V)
Cross sectional area of output conductor	4mm2(IEC).12AWG(UL)		Output wire length		300mm(+)/ 400mm(-)
Application conditions
Maximum system voltage	DC1500V(IEC)		Maximum staticload,front		5400Pa(1121b/ft3)
Operating temperature range	-40C~+85C		Maximum staticload, back		2400Pa(501b/ft3)
Maximum rated fuse current	25A		Through hail test		25mm diameter,impact speed23m/s
